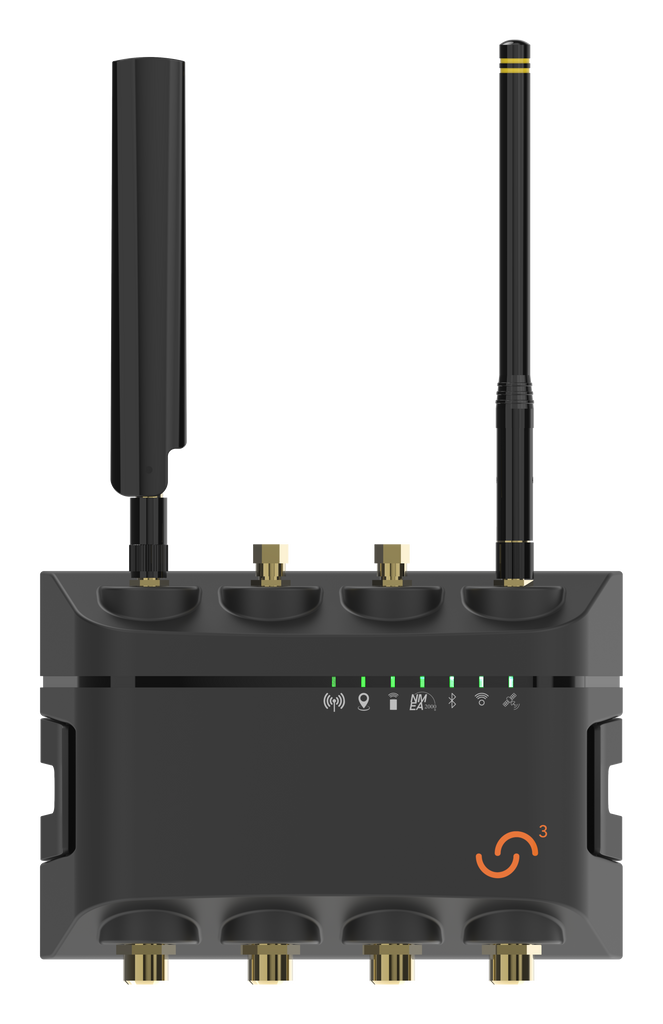

MTC Technical Specifications
|Physical Dimensions||6.5in x 4.5in x 1.25in|

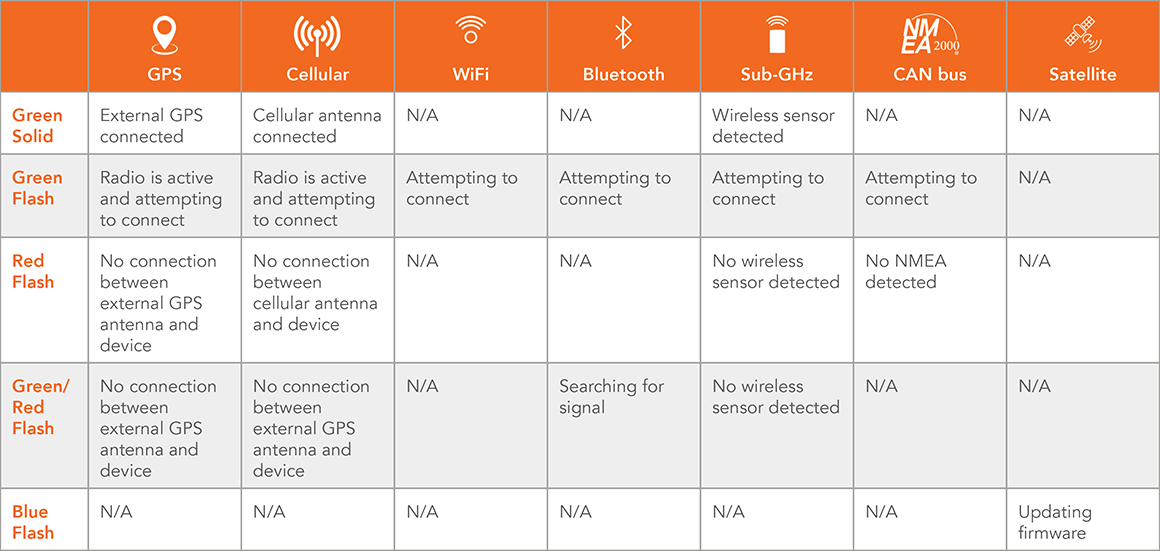

|Status LEDs||GPS (green) / Cellular (red)|
|Digital Inputs||7 (0-30 VDC)|
|Remote Battery Control||On/Off|
|Location Technology||56 channel GPS (with SBAS)|
|Analog Inputs||4 (0-30 VDC)|
|Temp Sensor Input||2 (Temperature Sensing)|
|Operating Voltage||9-30 VDC|
|Power Consumption||<20mA @ 12v (Sleep on network with SMS),
70mA @ 12v (Active Tracking)
|Back-Up Battery||3000mAh Lithium Polymer Battery|
|Environmental/Temperature||-22˚F to 167˚F (Connected to Battery Power),
-40˚F to 185˚F (Storage)
|Humidity||95% R.H. (Relative Humidity) @ 122˚F|
|Mounting Bracket||4.5in x 2.5in x 1.5in|
|GPS||Internal (SMA for optional external antenna)|

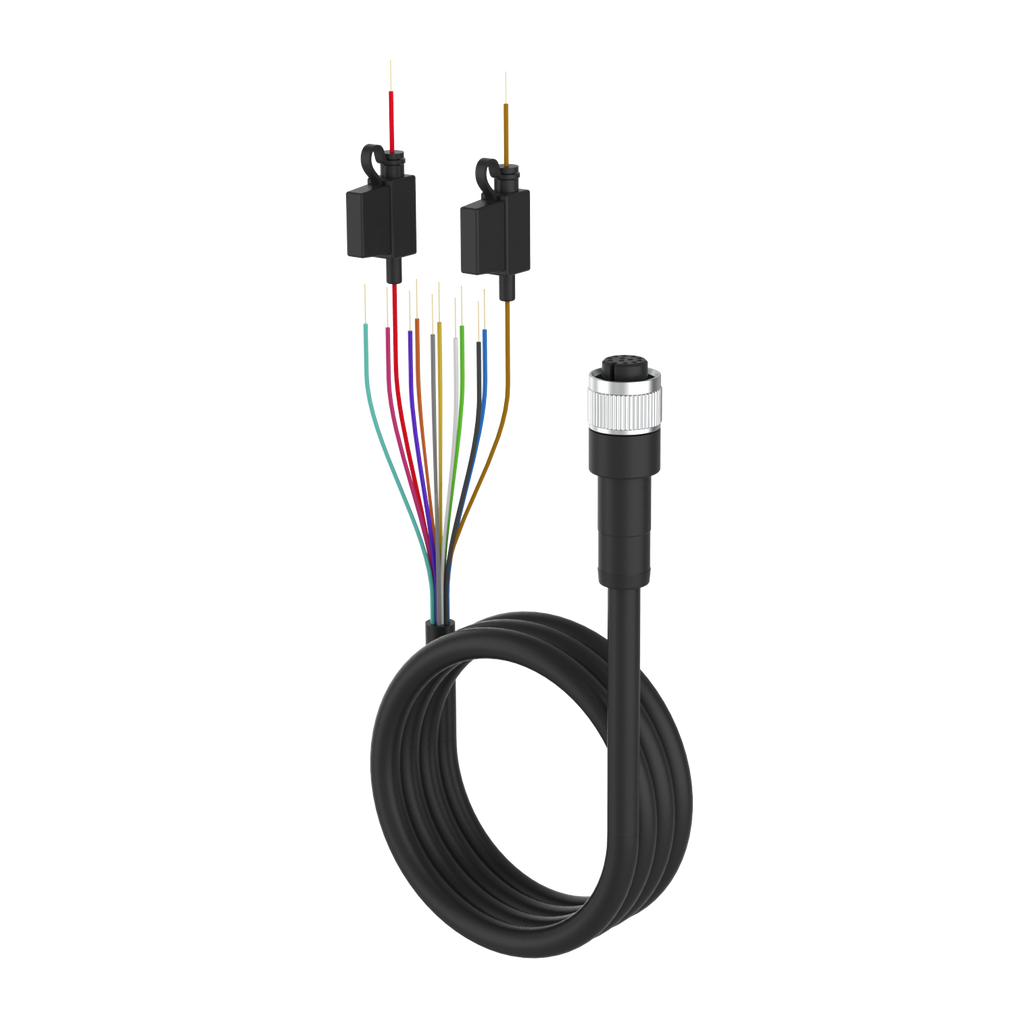

|Wired||26 gang terminal connector for wired sensors|
|Wireless||900mHz wireless transceiver to support (up to) 8 sensors (available Early 2018)|
|Certifications||Fully Certified: FCC, CE, IC, PTCRB, & all applicable carriers|
|Optional Features||External GPS Antenna, Satellite Transceiver|
MTC Product Features
GPS Position & Geo-Fence - Track the location and movement of your boat.
Battery Monitoring - Receive alerts if battery voltage is low.
Engine Metrics - Connect to the engine to monitor hours and receive service reminders.
Bilge - Connect to a bilge pump or high-water sensor.

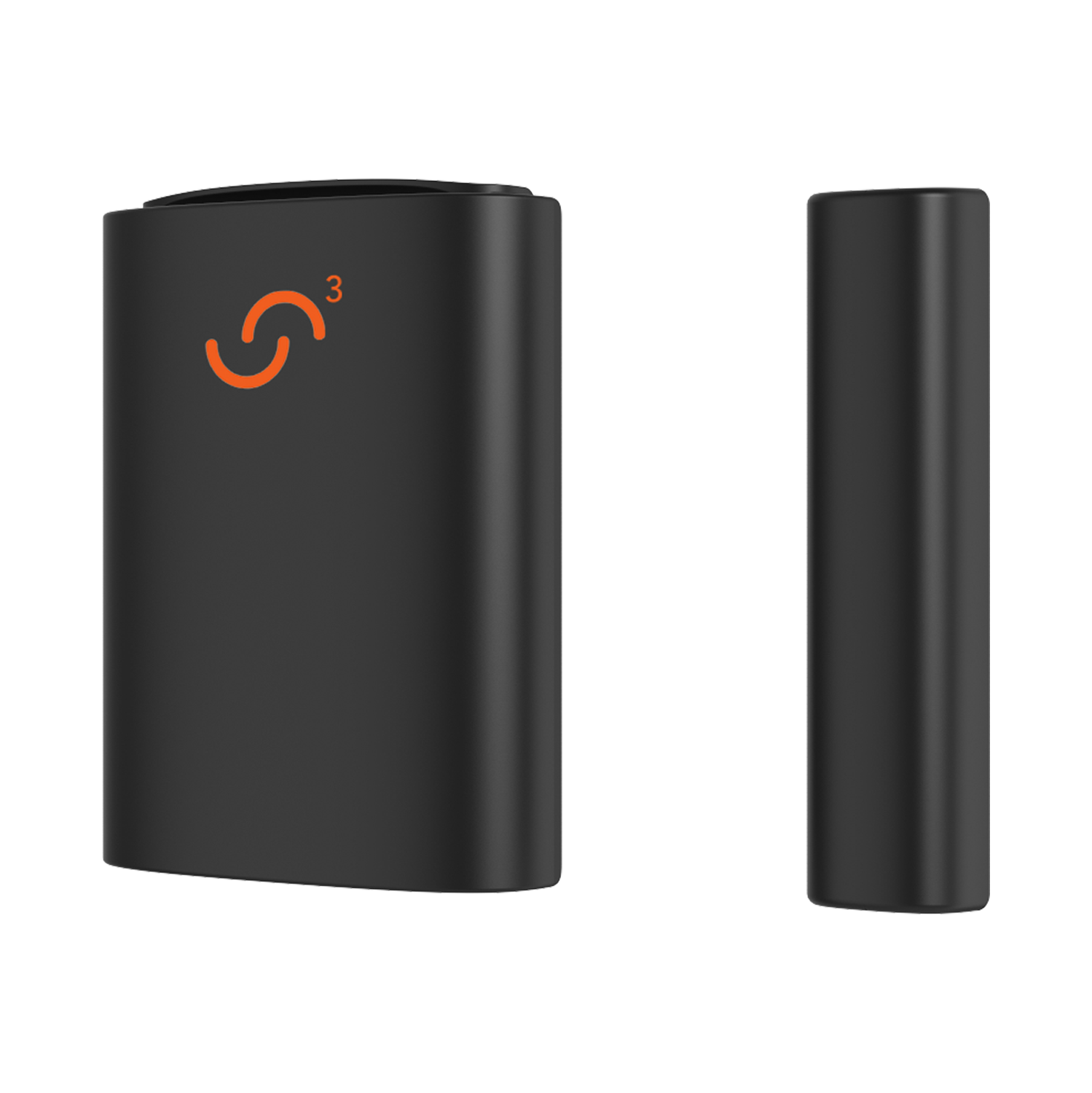

Security - Add motion sensor, magnetic switch, canvas snap sensor, or pressure pad.
Shore Power - Add sensor to power outlet to monitor shore power connection.
Temperature - Monitor temperature of cabin, engine room, fridge, or bait locker.
Remote Switching - Add wireless or wired sensors to control lights, HVAC, bilge pumps, etc.
