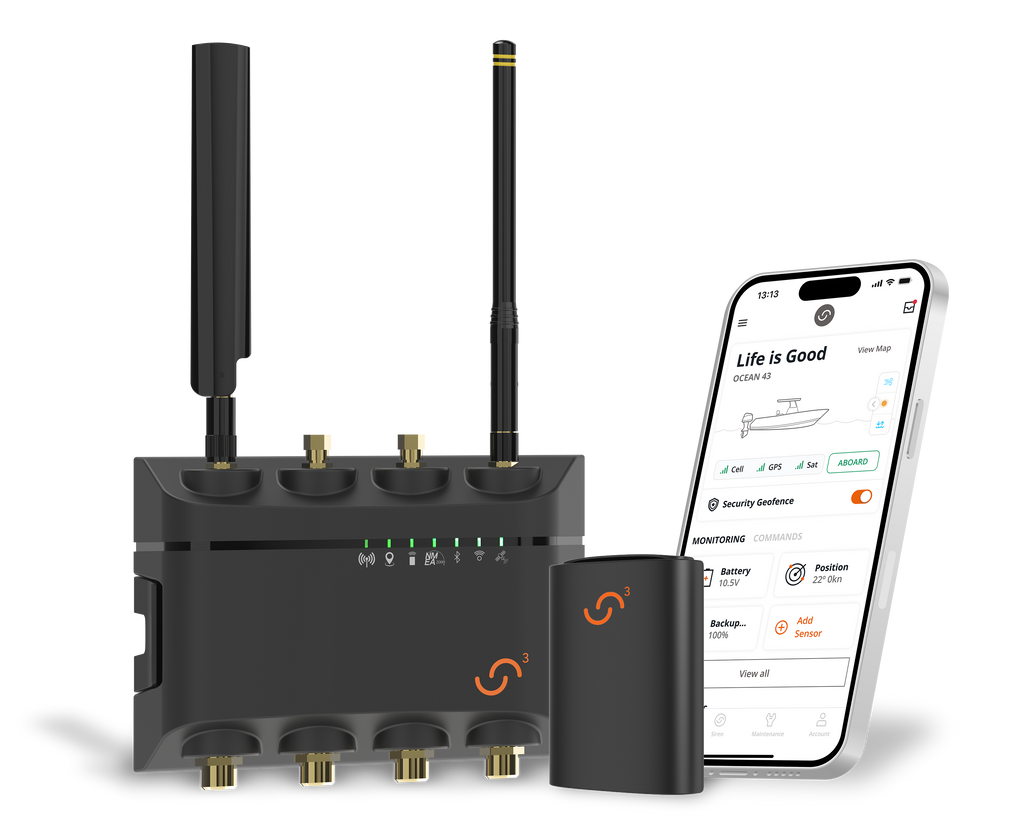

Siren 3 Pro Main Device
Regular price$799.99 USD
Install the Siren 3 Pro on your boat to monitor and track multiple critical systems such as battery voltage, bilge pump activity, water levels, shore power status, engine performance, temperature, location & more right on the App. Some monitoring capabilities require a Siren 3 Series Wireless Sensor or Wired Sensor.
Features
Guides
Tech Specs
More Features
Standard Features
Battery Monitoring
Monitor your boat’s battery & receive alerts if voltage is low
GPS Position/Geofence
Track boat’s location & receive alerts on boat movement
NMEA 2000
Best-in-class NMEA 2000 marine electronics backbone connectivity
Digital Switching
Remotely control lights, refrigerator and more
LTE-M (4G/5G)
The latest cellular technology connects you to your boat
*Based on 4G/5G LTE-M availability
Features with Add-On Sensors & Accessories
Engine Metrics
Monitor performance & support metrics for any NMEA propulsion system
Connected Fluid Tanks
Monitor tank levels (i.e. fuel, water, etc.) and check level history
Security/Entry
Add snap, motion & entry sensors for the ultimate boat security system
Bilge
Monitor bilge activity, including bilge run time & daily bilge cycles
High Water
Detect water and monitor water level in bilge
Shore Power
Monitor shore power connection & receive power outage alerts
Temperature
Monitor temperature of cabin, engine room, fridge and/or bait locker
Satellite Compatible
SirenSat provides smart boat location & tracking when outside of cell range
Wireless Sensors 3.0
Siren 3 Pro delivers improved wireless connectivity
User Guides & Manuals
Siren 3 Pro Wiring Diagrams
| Physical Dimensions | 6 in x 4.5 in x 2 in 152 mm x 113 mm x 50 mm |
| Weight | 1lb .5kg |
| Operating Voltage | 9-30 VDC |
| Internal Battery Type | 3000mAh Lithium Polymer Battery |
| Internal Battery Backup Power | Up to 48 Hours Backup Power |
| Firmware Upgradeability | Over the Air (OTA) for both Siren 3 Pro and wireless sensors |
| Cellular | External Antenna, 4G/5G CAT-M1, with fall back to NB-IoT and EGPRS |
| Wireless | External Antenna, Sub-GHz |
| NMEA 2000 | CAN Bus 1, M12 (5 Pin) |
| Application-Dependent Protocol (ex. J1939) | CAN Bus 2, M12 (5 Pin) |
| Satellite Modem | RS-232, M12 (12 Pin) Wiring Cable #2 |
| Expansion Bus | RS-422. M12 (12 Pin) Wiring Cable #2 |
| Mounting | Snap-in bracket with (4) screws provided for mounting |
| Positioning | Internal Antenna, GNSS, GPS/GLONASS with SBAS, (External antenna option available) |
| Connectivity | Interface cable with mating connector of 1m length provided for wired inputs and outputs with 24 AWG conductors. |
| Environmental/Temperature (Operating) | 32°F to 113°F 0°C to 45°C |
| Environmental/Temperature (Storage) | -4°F to 140°F -20°C to 60°C |
| Humidity | 0 to 90% RH |
| Water & Dust Tolerance | IP67 |
| Certifications | FCC Part 15, Subpart B, Class B EN60945 CE PTCRB NMEA 2000 |
| Wired Sensor Inputs | Battery 1 Battery 2 High Water 1 High Water 2 Security 1 Security 2 Security 3 Ignition Battery Switch Shore Power Remote Arm/Disarm |
| Wired Sensor Outputs | Remote Battery Switch (#7713) Relay Output 1 Relay Output 2 Relay Output 3 Relay Output 4 |
| Wireless Sensors | Magnetic Reed Switch (Intrusion) Bilge Pump Activity Temperature High Water Battery Voltage |
Status LED Indicators
Siren 3 Plus vs Siren 3 Pro
| Feature / Benefit |  Siren 3 Pro |
 Siren 3 Plus |
|---|---|---|
| Standard Features (Tracking, Monitoring & Alerts) | ||
| GPS Position | ||
| Geofence Capability | ||
| Battery Voltage | ||
| Connectivity | ||
| External Cellular Antenna (LTE-M: 4G/5G) | ||
| Internal Cellular Antenna (LTE-M: 4G/5G) | ||
| External Wireless Sensor Antenna | ||
| Internal Wireless Sensor Antenna | ||
| Internal GPS Antenna | ||
| External Satellite Module (Optional) | ||
| Add-On Features | ||
| Wireless Sensors, Siren 3 Series (Bilge Activity, High-Water, Temperature, Entry, Battery) | ||
| Wired Sensors (Shore Power, Security & More) | ||
| Wired Accessories for Direct Control of Onboard Devices (Remote Battery Switch, Lighting, Audible Alarms & More) | ||
| SirenSat (Offshore Satellite Connectivity) | ||
| External Cellular & GPS Antennas | ||
| Hardware | ||
|

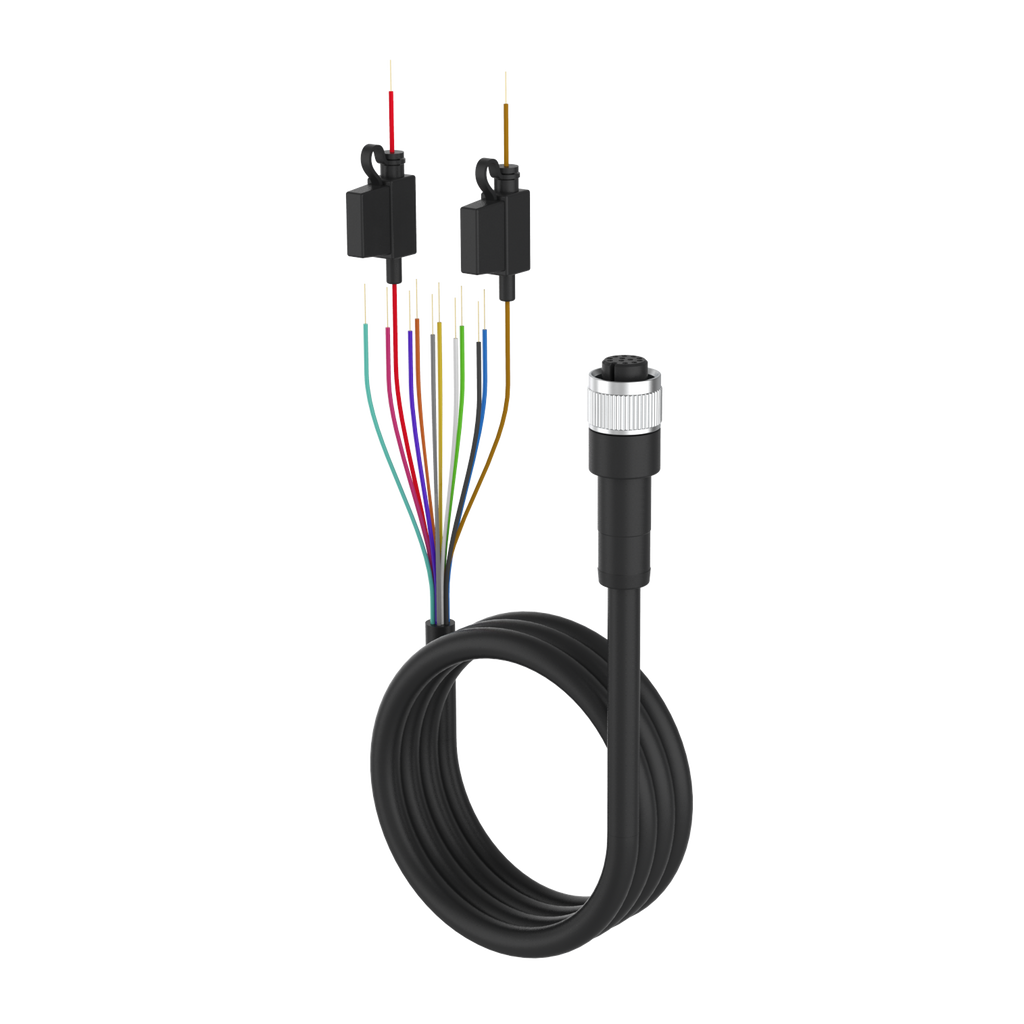

Wiring Cable/Harness 1* (Battery 1 & 2, Remote Arm/Disarm, Ground, High Water 1, Shore Power, Security 1, Ignition/Engine Hours, Remote Battery Switch, Relay Control 1 & 2, Battery Switch ON/OFF) *12 Input / Outputs |
||
|
Wiring Cable/Harness 2^ (High Water 2, Security 2 & 3, Relay Control 3 & 4) ^Max capacity for directly wired sensors & accessories |
||
|
Clip-on Mounting Bracket (Easy Installation) |
||
|
Water-Resistant Design |
||
|
Accessible Back-up Battery |
||
| NMEA 2000 / CAN Bus | ||
| NMEA 2000 Built-In | ||
| J1939 Built-In (CAN 2) | ||
| Digital Switching with CZone Compatibility (Control Lights, A/C, etc. from App) | ||
| Engine Performance Monitoring (RPM, Fuel Consumption, Engine Hours, Temperature & Oil Pressure) | ||
| Tank Level Monitoring (Fuel, Water & Waste) | ||
| ZF Transmission Monitoring & Support | ||
| Other Features | ||
| Over-The-Air Software Updates | ||
| Customized Boat Branding in App | ||
| Customized Engine Manufacturer in App | ||
| Self Install Option (DIY Friendly) | ||
| Certified Installer Network | ||
| Made in USA | ||
 |
Save Money with Insurance Discounts Most marine insurance providers offer discounts for security & boat monitoring solutions. You could save 5-10% on boat insurance depending on your insurance carrier. Ask your agent to learn more! A Connected Boat® is the smart choice. |
 |
Digital Switching with CZone Compatibility CZone, remotely power up systems before heading to your boat. Control lights, A/C & other systems and access digital switching right from the Siren Connected Boat app. Welcome to the Connected Boat® with CZone® Digital Switching. Requirements: power, connection to the NMEA2000 network & configuration update from a certified CZone® installer. |
